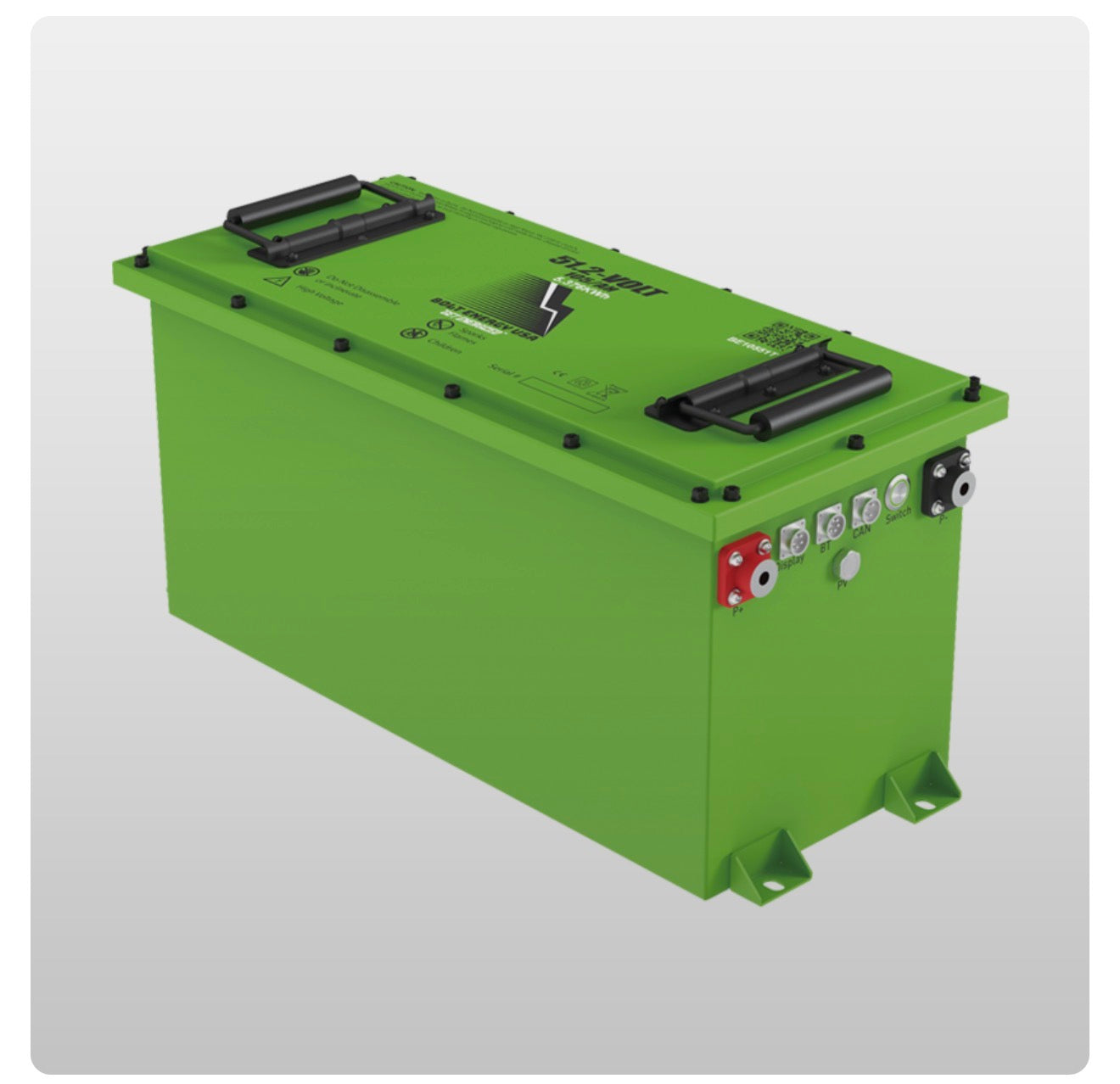

Bolt Energy 51.2v 105ah Battery (Installation available for $300) OR (Local Pick Up OR Delivery) 12 Year Warranty! 6 year full replacement, 6 years prorated.
Bolt Energy 51.2v 105ah Battery (Installation available for $300) OR (Local Pick Up OR Delivery) 12 Year Warranty! 6 year full replacement, 6 years prorated.
Regular price
$2,430.00 USD
Regular price
Sale price
$2,430.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Comes with a whopping 12 Year Warranty! 6 Year full replacement and 6 years prorated.
Stop white knuckling your range and embrace the ultimate power setup with a massive 105Ah of pure lithium freedom. This professional-grade powerhouse eliminates the heavy maintenance of the past, giving you enough juice to outlast the longest days without ever breaking a sweat.
- Fits 48 Volt PTVs
- Heated and Non-Heated Options Available
- Up to 50 Miles Range
MECHANICAL SPECIFICATIONS
- Dimensions (L x W x H): 20″ x 8.43″ x 10.65″
- Weight: 105lbs (47.63kg)
- Terminal Type: M8*1.5*25mm
- Cell Configuration: 1P16S
- Case Material: Powder Coated Steel
- Enclosure Protection: Designed with IP66 Stardard
- Cell Type – Chemistry: Prismatic- LiFePO4
DISCHARGE SPECIFICATIONS
- Maximum Continuous Discharge Current: 250A
- Peak Discharge Current: 520A ± 15.6A (30S)
- BMS Discharge Current Cut-Off:260 A ± A7.8A (50S)
- 520A ± 15.6A (30S)
ELECTRICAL SPECIFICATION
- Nominal Voltage: 51.2V
- Working Voltage: 43.2 – 58.4V
- Recommended Voltage: 48.0V – 57.0V
- Nominal Capacity: 105Ah
- Energy: 5,376Wh
- Capacity @ 25A: 252 min
- Efficiency: 0.99
- Self Discharge: <3% per Month
CHARGE SPECIFICATIONS
- Recommended Charge Current: 5 – 52A
- Maximum Input Current: 350A
- Charge Current Cut-Off: 375A
- BMS Charge Voltage Cut-Off: 58.5V
- Reconnect Voltage: <58.5V
- Charging Temp. Range: 34°F to 140°F (0-60°C)
COMMUNICATION
- Bluetooth: Bluetooth receiver
- CAN: CAN port for testing battery
